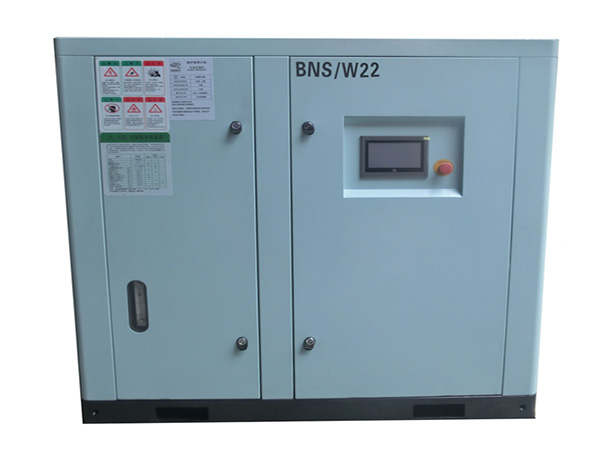

水润滑无油螺杆空压机
型号:BNS/
功率:15~400W
气量:1.8-73.0 NM3/Min
能效:见样本
质保:两年
型号(BNS) | 排气量/排气压力(m³/min/bar) | 功率(Kw) | 润滑水量(L/min) | 接管口径 | 外形尺寸mm | 重量(Kg) | ||
15W | 2.2/8 | 2.1/10 | 1.8/12.5 | 15 | 26 | G1 | 1600×910×1350 | 650 |
18W | 2.9/8 | 2.7/10 | 2.3/12.5 | 18 | 34 | G1 | 1600×910×1350 | 840 |
22W | 3.6/8 | 3.2/10 | 2.5/12.5 | 22 | 41 | G1 | 1600×910×1350 | 870 |
30W | 5.0/8 | 4.3/10 | 3.6/12.5 | 30 | 55 | G1 1/4 | 1950×1050×1430 | 980 |
37W | 6.2/8 | 5.7/10 | 4.6/12.5 | 37 | 70 | G1 1/4 | 1950×1050×1430 | 1000 |
45W | 7.7/8 | 6.9/10 | 6.0/12.5 | 45 | 87 | G1 1/2 | 2150×1300×1590 | 1060 |
55W | 9.8/8 | 8.7/10 | 7.3/12.5 | 55 | 100 | G2 | 2150×1300×1590 | 1250 |
75W | 13.0/8 | 11.3/10 | 10.1/12.5 | 75 | 125 | G2 | 2150×1300×1590 | 1580 |
90W | 15.5/8 | 14.0/10 | 11.2/12.5 | 90 | 150 | Dn50 | 2550×1400×1605 | 2030 |
110W | 19.5/8 | 16.5/10 | 13.7/12.5 | 110 | 185 | Dn65 | 2550×1400×1605 | 2450 |
132W | 23.0/8 | 20.0/10 | 16.5/12.5 | 132 | 215 | Dn65 | 2550×1400×1605 | 2850 |
160W | 26.5/8 | 23.5/10 | 19.5/12.5 | 160 | 270 | Dn65 | 3300×2200×2000 | 3750 |
200W | 33.3/8 | 28.0/10 | 23.5/12.5 | 200 | 350 | Dn80 | 3300×2200×2000 | 4100 |
250W | 40.0/8 | 37.0/10 | 32.0/12.5 | 250 | 450 | Dn100 | 3300×2200×2000 | 4750 |
280W | 50.0/8 | 45.0/10 | 45.0/12.5 | 280 | 530 | Dn125 | 4000×2000×2100 | 5600 |
